Topic-Specific Consultation Rooms

Valve operations during an emergency... Emergency shut-off valve (release valve)

These are Automatic valves run on electricity.
If there’s a power outage and they stop working, you will have problems...

When the power source is lost, the spring forcibly operates the valve to ensure that it is fully opened or closed, preventing secondary damage such as a chemical leak, fire or explosion.

•

•

• Emergency (Shut-off/Release) Ball Valve
• Emergency (Shut-off/Release) Butterfly Valve

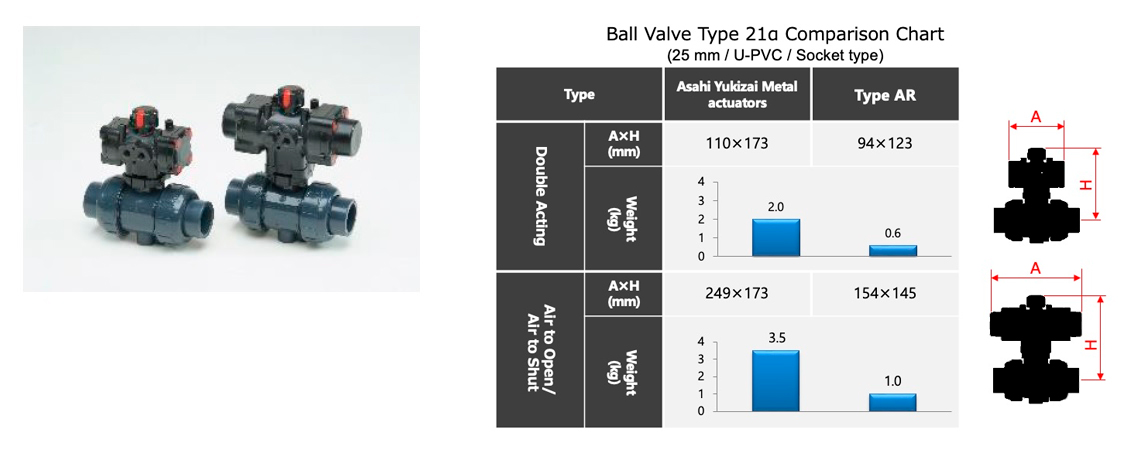

Actuator replacement... Pneumatic Actuated Ball Valve Type AR

Many of our customers have commented on how fiddly it is to disassemble and assemble the bolts and couplings that connect actuators with valves when they replace the actuator in an existing valve!

We have eliminated the fiddly work by designing the mount that connects the actuator to the valve with a snap-in construction. Known as one-touch connection

•

•

You can also use different colors to make the piping easily identifiable.

• Pneumatic Actuated Ball Valve Type AR

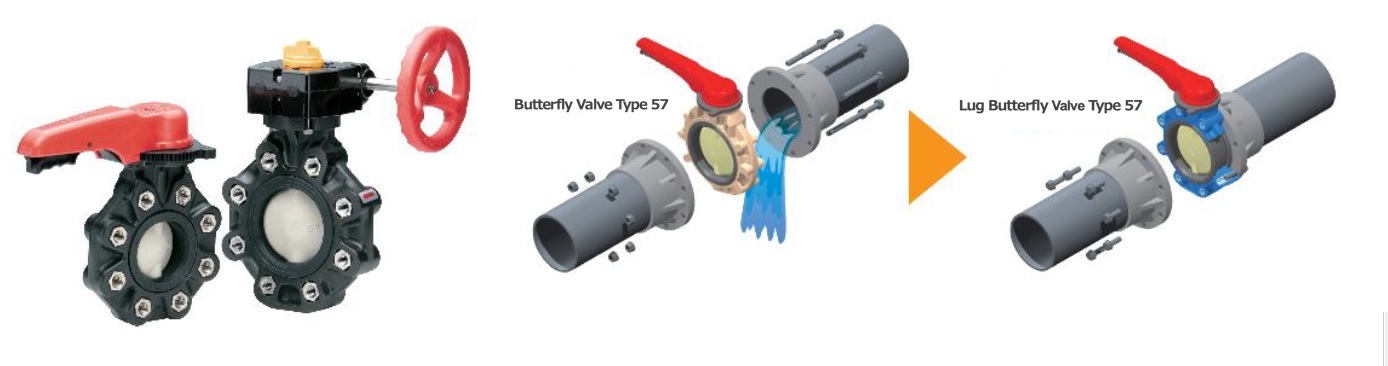

Draining off fluid when replacing a valve... Butterfly Valve Type 57L

When replacing a standard butterfly valve, you need to drain off any fluid in the pipe. Many of our customers have commented on how fiddly that is.

There is no need to drain off the fluid since the pipe on the secondary side can be removed while the fluid is stopped by the valve.

• Butterfly Valve Type 57L

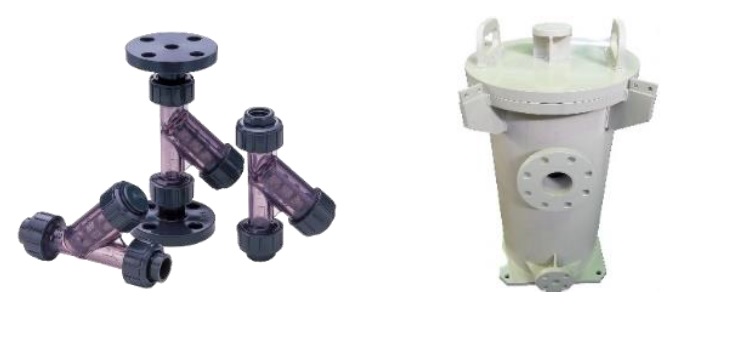

Removing waste and foreign matter from pipes... Sediment Strainer (Type Y) or Bucket Strainer

Sometimes waste and foreign matter get into the fluid running through the pipes.
This may scratch or damage the valves and other kinds of equipment.

The strainer sieves out foreign matter and waste, preventing any trouble before it happens.

Bucket strainers are capable of removing more waste and foreign matter than Y-strainers, which means less frequent cleaning is needed. We can manufacture bucket strainers to match your requirements in terms of materials and shapes.

• Sediment Strainer (Type Y)

• Bucket Strainer

Static seismic analysis of piping... Our piping stress analysis service

Japan is very prone to seismic activity. At the very least, we all want to avoid secondary disasters caused by earthquake damage to equipment...
Wouldn’t you like to know the level of seismic activity your existing pipes can withstand?

If you provide us with the drawings and operating conditions, we will pinpoint the vulnerable spots.
An analysis at the design stage for new piping is also worth having done for your own peace of mind.

•

•

In addition, we can respond to your needs with the most appropriate design and installation solutions, based on the know-how we have built up during our many years of engineering experience. For example, we can offer designs that incorporate cushion saddles, flexible tubes and flexible pipes.

Preventing chemical leakage from pipes... AV Double Contained Pipe

Factory pipes are often used for chemicals such as hydrofluoric acid that would be dangerous if they came into contact with the human body.
When such dangerous chemicals are carried through pipes laid above passageways or ceilings, there is a risk of workplace injuries or fatalities if a pipe should leak.
There is also a risk of damage to apparatus if the fluid becomes dispersed into the equipment.

The Water Pollution Control Law makes appropriate management of equipment mandatory in order to prevent the contamination of groundwater by chemicals that contain toxic substances.
The leakage of chemicals from pipes must be prevented to protect the environment as well.

•

The dual structure of the pipe means that, even if there should be a leak, the fluid is prevented from spraying or leaking outside of the pipe.
Visual inspections are easy if the outer pipe is made transparent.
We can also manufacture transparent boxes to prevent spray from flanges and valves.

AV pipes and drain pans are also effective measures against chemical leaks.

Pipe installation with a lower risk of leaks… Prefabricated AV pipe

In recent years there has been a generational shift in the construction industry combined with a lack of workers. As a result, we are seeing many cases of bad workmanship by people who do not yet have sufficient technical experience.
Installation work involving AV pipes in particular requires specialized knowledge and techniques, which means that leakage problems can easily occur as a result of bad workmanship.

•

Send us data such as drawings and isometric drawings, and we will do a study and manufacture piping that can reduce on-site installation work.
We can offer PP piping as well as AV pipes.

• Prefabricated AV pipe plumbing

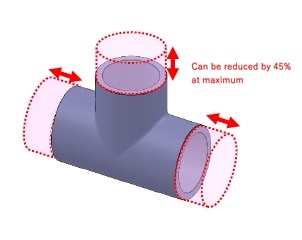

Limited plumbing space... Short face-to-face joints, AV minimum joints

Work using elbow joints or T-joints inevitably requires a lot of space.
Sometimes it is impossible to secure a large space in the plumbing, for example in the area around a machine.

•

•

We cut and standardize joints to the absolute minimum length required to guarantee the adhesive bonding strength of the joint and the pipe.
This minimizes the space required and makes it possible to install plumbing in confined spaces.

Analysis of piping curvature... Our piping stress analysis service

Plastic pipes expand and contract with the heat. Without appropriate support, curvature and warping can sometimes occur due to temperature fluctuations caused by operating conditions and seasonal changes.
There is a risk that inappropriate support will generate concentrated stress in the pipes, leading to leaks and damage.

If you provide us with the drawings and operating conditions, we will pinpoint the spots where concentrated stress is likely to occur.

•

•

In addition, we can respond to your needs with the most appropriate design and installation solutions, based on the know-how we have built up during our many years of engineering experience. For example, we can offer designs that incorporate measures to deal with expansion/installation at elbow joints, and cushion saddles.

It is possible to calculate the amount of temperature-induced expansion and contraction in plastic pipes from the linear expansion coefficient of the plastic, the temperature difference, and the spacing of the supports.
Please use the handy calculator below.

Handy calculator for pipe expansion and contraction due to temperature differences

We offer the most appropriate design and installation solutions, based on the know-how we have built up during our many years of engineering experience.
Please feel free to contact us for further information.

AV pipe installation work in areas where naked flames are prohibited... Peeling machine

When you want to peel the FRP layer from an AV pipe on site, there is a process that uses a gas burner. However, this standard AV pipe installation work cannot be done in areas where naked flames are prohibited.

•

•

No fire (no direct heat) is required so there is no problem in using it in areas where naked flames are prohibited.
In addition to being faster than peeling manually, its performance does not depend on the skill of the operator.

• Please contact your nearest ASAHI YUKIZAI office.

Low leaching installation methods... Fusion bonding

Places such as semiconductor factories have ultrapure water lines where the leaching of ingredients in the adhesive used for vinyl chloride can have a negative impact on production.

•

Fusion bonding is possible for ultrapure vinyl chloride, as well as materials such as PP and PVDF.
Adhesive ingredients are not leached into the fluid since no adhesive is used, so the system can start up smoothly. Once the pipe installation work has been completed.

• Please contact your nearest ASAHI YUKIZAI office.

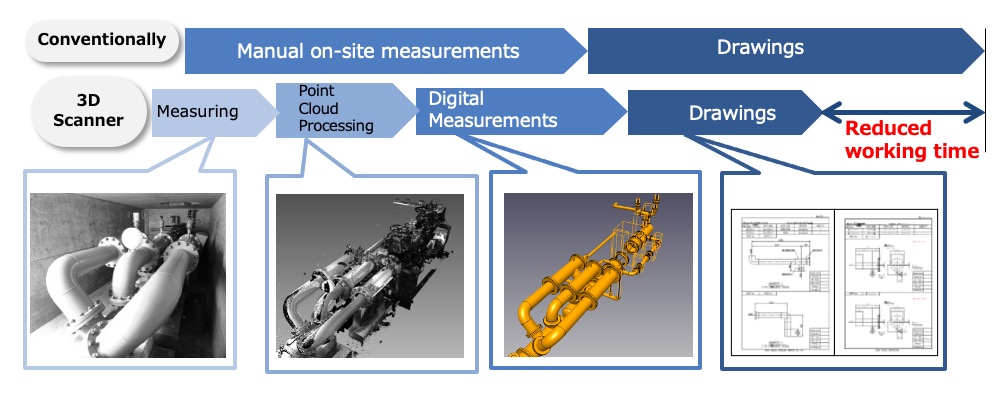

Creating drawings of existing pipes, towers and tanks... 3D scanning service

When customers are planning to upgrade their factory plumbing, towers and tanks, they often find that the plumbing is different from how it was when the factory was first built, or that they do not actually have the drawings.

Automatic measurements with a 3D scanner make it possible to swiftly measure the dimensions of existing pipes.
The measurement data can be turned into 3D drawings. We offer the most appropriate design and installation solutions, based on the know-how we have built up during our many years of engineering experience, and will design and manufacture the most suitable piping, towers and tanks based on many years of experience in the manufacture of processed plastic products.
It is also possible to check for interference from other pipes and equipment.

Limited valve installation space... (1) Pneumatic Actuated Ball Valve Type AR

A certain amount of space is essential when installing a valve, but it can sometimes be difficult to install automatic valves in very confined spaces, such as inside equipment.

The smallest possible actuator to match the valve size is directly mounted to achieve compactness.

• Ball Valve Type 21/21α Pneumatic Activated Type AR

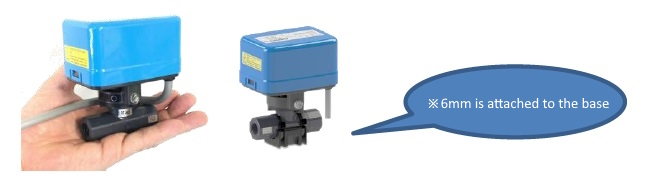

Limited valve installation space... (2) Picoball Electric Actuated Type V

A certain amount of space is essential when installing a valve, but it can sometimes be difficult to install automatic valves in very confined spaces, such as inside equipment.

We automated out first valves with nominal diameters of 6 mm and 10 mm, and also made our valves with nominal diameters of 13 mm and 15 mm much lighter and smaller than previous models.

Limited valve installation space... (3) Short Face-to-Face Sediment Strainer (Type Y)

Strainers are used to remove waste and foreign matter from inside pipes.
They can sometimes be difficult to install in very confined spaces, such as inside equipment.

It has shorter face-to-face dimensions and is more compact that conventional strainers. (According to our survey)

•

•

•

Job training... The AY certification service

In recent years there has been a generational shift in the construction industry combined with a lack of workers. As a result, we are seeing many cases of bad workmanship by people who do not yet have sufficient technical experience. There is a risk of chemical leaks and damage to pipes as a result of faulty installation.

We have launched a service that will certify a certain level of knowledge and skills regarding the installation of PVC and AV pipes260: faulty installation.
As a manufacturer, we have established a full-scale backup system to give your equipment even greater safety and reliability.

•

•

•

We also offer coaching and study groups on installation work that can be tailored to suit your needs. Please feel free to contact us for further information.

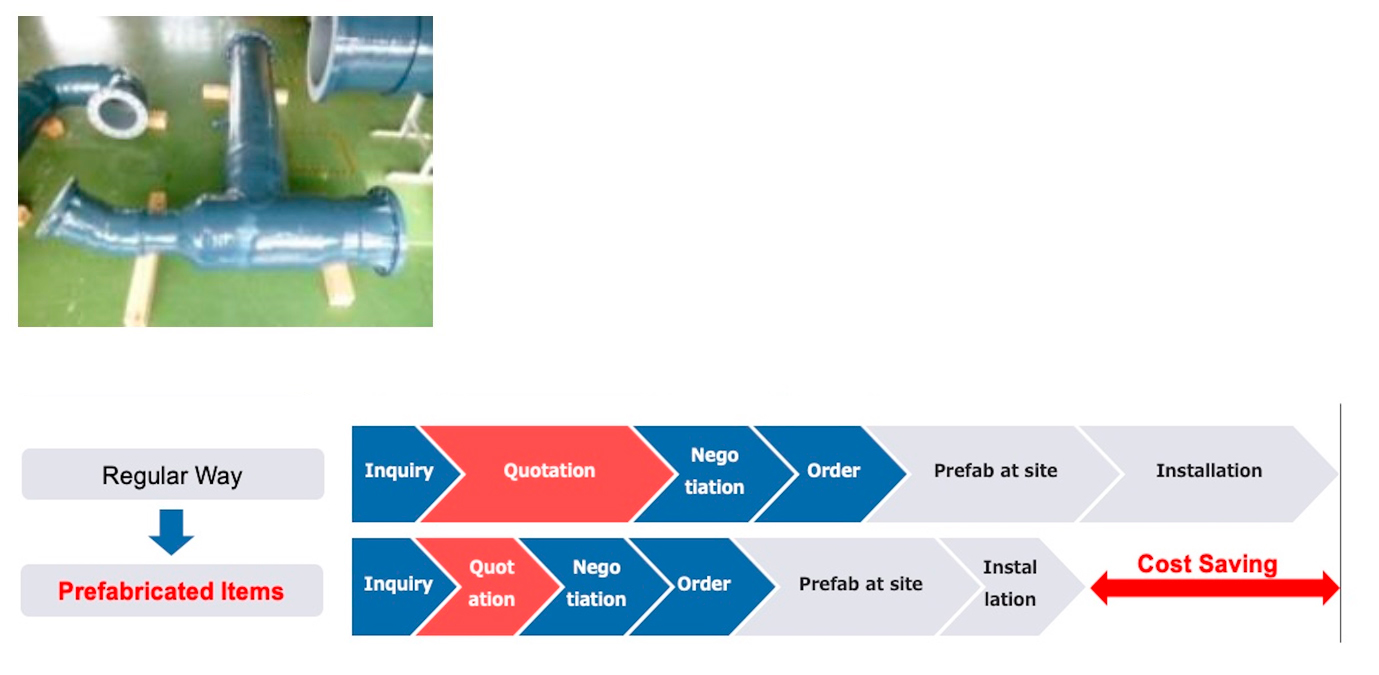

There aren’t enough skilled workers... Prefabricated AV pipe plumbing

The number of workers with pipe installation skills is decreasing nationwide. At some times of year, construction work does not proceed according to schedule as a result of being unable to secure a sufficient number of workers.

If you send us data such as drawings and isometric drawings, we will explore and manufacture piping that can reduce on-site installation work.
We can offer PP piping as well as AV pipes.

• Prefabricated AV pipe plumbing

The chemical resistance of our products

Please check the chemical resistance chart for resistance to chemical fluids in general use.
If you wish to inquire about a chemical not listed in the aforementioned chart, please contact your nearest ASAHI YUKIZAI office after checking the type and concentration of the chemical, and the temperature(s) that will be used.

You can also look up recommended materials and products from a list of chemicals.

The relationship between maximum allowable working pressure and temperature for each product type

● Unplasticized polyvinyl chloride pipe
General Catalog (Pipe & Fittings)

● C-PVC pipe (Super Pipe)
General Catalog (Pipe & Fittings)

● Valve related
General Catalog (Valves)

Please contact your nearest ASAHI YUKIZAI office for information about any products not listed above.

Pipe that is resistant to hydrochloric acid... Chemical Pipe

When PVC pipe is used on a hydrochloric acid line, the acid can sometimes seep out of the pipe.

Compared to standard unplasticized vinyl chloride pipe, this is more resistant to hydrochloric acid and has greater resistance to permeation.

•

PP pipe is also highly resistant to hydrochloric acid.

Pipe that can withstand high temperature and high pressure environments... AV Pipe

In recent years, plants are imposing ever stricter requirements as they aim to boost production. In an increasing number of cases, highly corrosive chemicals are used at higher temperatures and under greater pressures.

The internal unplasticized vinyl chloride pipe has excellent chemical-resistance and the external FRP reinforcement enables long-term use at high pressures and high temperatures.
We have a line-up of five types of pipe to choose from, depending on the operating temperatures and pressures, and the type of chemicals.

•

PP pipe is also highly resistant to hydrochloric acid.

Gaskets that can withstand sodium hypochlorite... Jiablock™ Gasket™

Gaskets are always inserted in pipe flange joints, but if a generic gasket is used it will be damaged by the sodium hypochlorite and it will leak.
If the corrosion worsens, there is a risk that the gasket will not only leak, its ingredients will also be leached and contaminate the line.

•

These gaskets suffer less damage from sodium hypochlorite and can maintain a reliable seal for longer than ordinary gaskets. (According to our survey)
Their construction means that they are not prone to leaks even when surface pressure is low, so they also have a buffer effect against thermal stress and pipe stress.

Ideal for corrosive chemical lines... Butterfly Valve Type 55IS

Valves deteriorate quickly on dangerous chemical lines, and lines subject to heavy corrosion or high temperatures, and replacing the valves is time-consuming.

•

The reliable axial seal means lower maintenance costs and less risk of leaks.

Check for pipe deterioration... Step 1

You want to check how much deterioration there is in pipes that have been in use for a long time, but you don’t know where to start...

Simply enter the operating conditions of the pipe in the table on our website. You can leverage our years of experience to check the soundness of your pipe.

Pipe exposed to direct sunlight... UV Damage Diagnosis

Plastic pipe whitens, yellows or blackens when used outdoors. This is a sign that it is being damaged by UV rays.
If it is continued to be used in that state, it may be damaged by earthquakes or heat shock as a result of sudden impact or oscillation.

The extent to which pipe has deteriorated can be investigated by shutting down the production line, disconnecting the pipe and carrying out a survey of deterioration in its physical properties (destructive testing). However, sometimes production lines cannot be shut down just to carry out a survey.

A sample of the discolored pipe surface is scraped off so there is no need to shut down the line.
We analyze the flake samples and estimate the loss of strength and flexibility caused by UV damage.
An efficient way to proceed is to try this service first and then, if considerable damage is suspected, carry out a survey of the deterioration in the pipe’s physical properties.

Pipe wall thinning... Ultrasound Test

Vinyl chloride pipe wall thinning may occur on lines carrying chemicals that corrode vinyl chloride plastic, or in corner areas that are prone to turbulence.
When the pipe wall becomes thinner, this naturally decreases its pressure resistance. Continued use in that state will lead to damage and leaking.

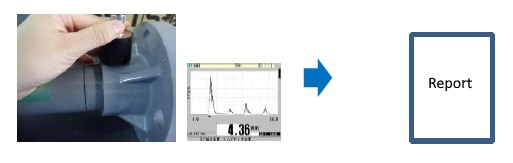

The ultrasonic device checks the state of the pipe interior to measure the extent to which the pipe wall has thinned.
Regular checks can give an understanding of how fast the pipe wall is thinning, and help to schedule pipe replacement work.

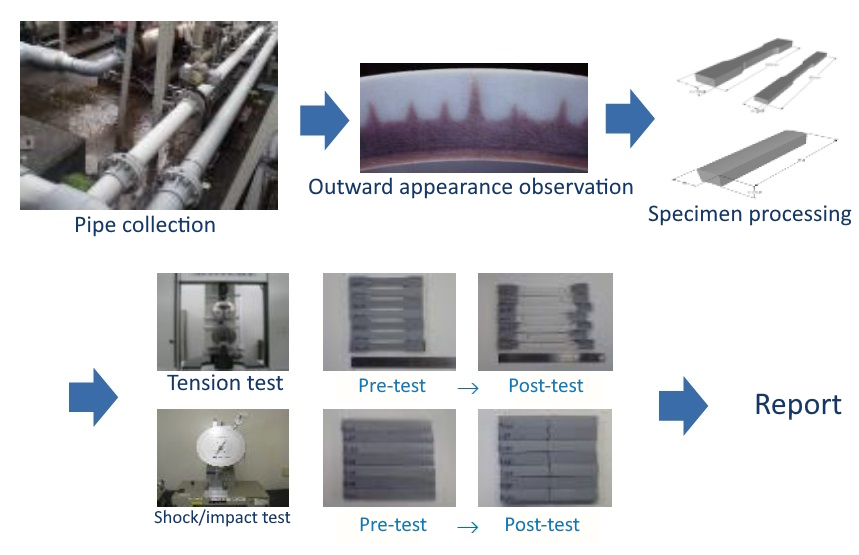

Pipe Physical Deterioration Survey

Don’t you sometimes wonder about the extent to which pipe materials have deteriorated due to aging or chemical damage?

If you provide us with the pipe material you are using, we will examine the extent of actual damage to its physical properties.
Regular surveys will enable us to draw up data such as individual lifespan curves, and suggest the optimum time for upgrades.
We can also investigate the main causes of pipe damage and leaking.

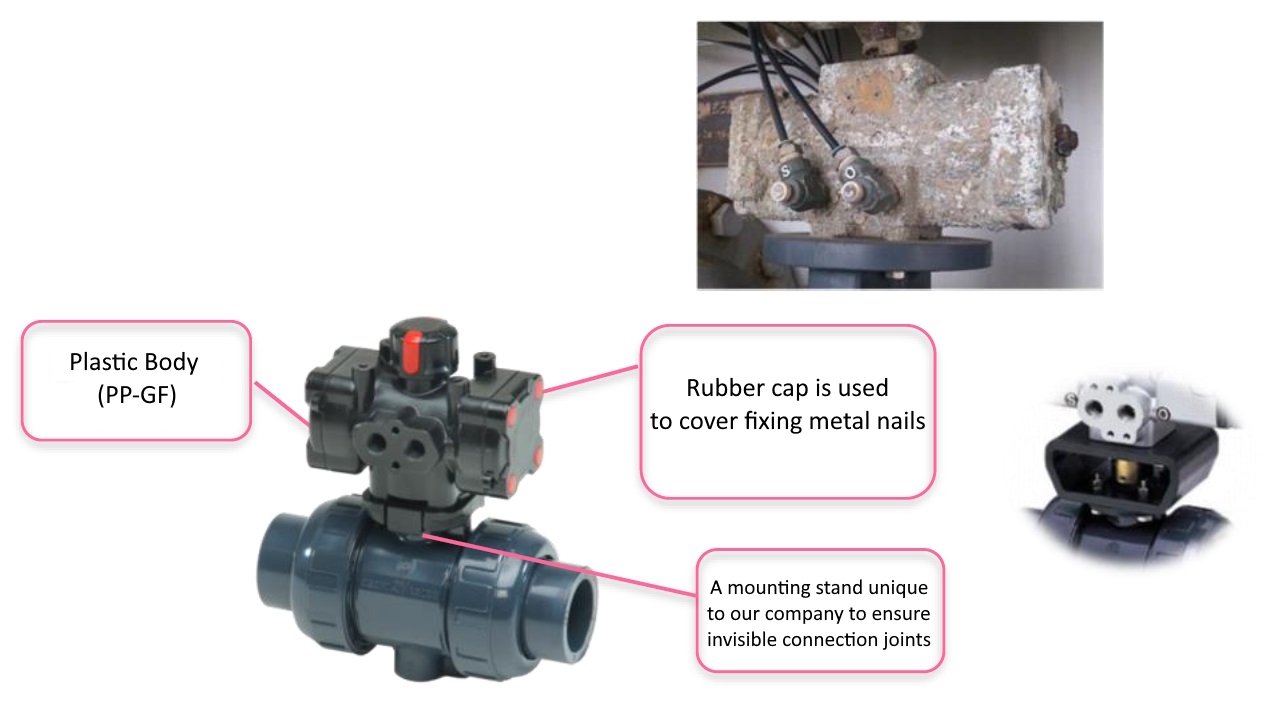

Countering actuator corrosion and rust... Pneumatic Actuated Ball Valve Type AR

Actuators sometimes rust due to factors such as the use environment. Rusty actuators can cause malfunctions and damage.

The plastic body means that there is no risk of rusting.

• Type 21/21α Pneumatic Activated Ball Valve Type AR

A valve not vulnerable to corrosive gas or rainwater... Picoball Electric Actuated Type V

Valves sometimes rust due to use environment factors such as corrosive gas and rainwater.

•

This valve is not vulnerable to rust since it is a plastic valve equipped with a plastic mount and plastic housing for the actuator.

A valve not vulnerable to corrosive gas or seawater... Butterfly Valve Type 58

Valves sometimes rust due to use environment factors such as corrosive gas and seawater.

•

It has excellent corrosion resistance since plastic is used for the body and disc.

• Butterfly Valve Type 58

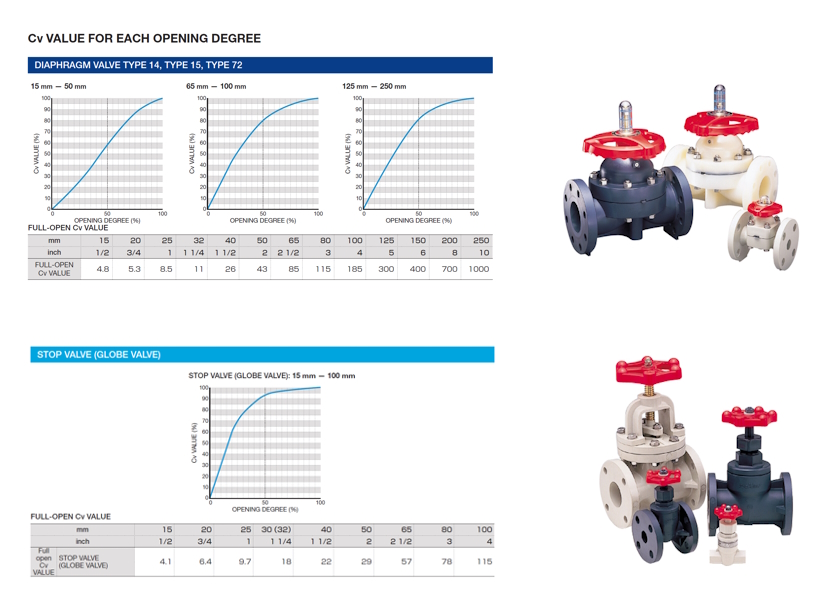

Valves that are good at flow control... Diaphragm Valves Types 14, 15 and 72, Stop Valve

When you want to install a valve to control flow...

Near linear flow characteristics make it possible to adjust flow by adjusting the aperture.

• Diaphragm Valve Type 14
• Diaphragm Valve Type 15
• Diaphragm Valve Type 72

• Stop Valve

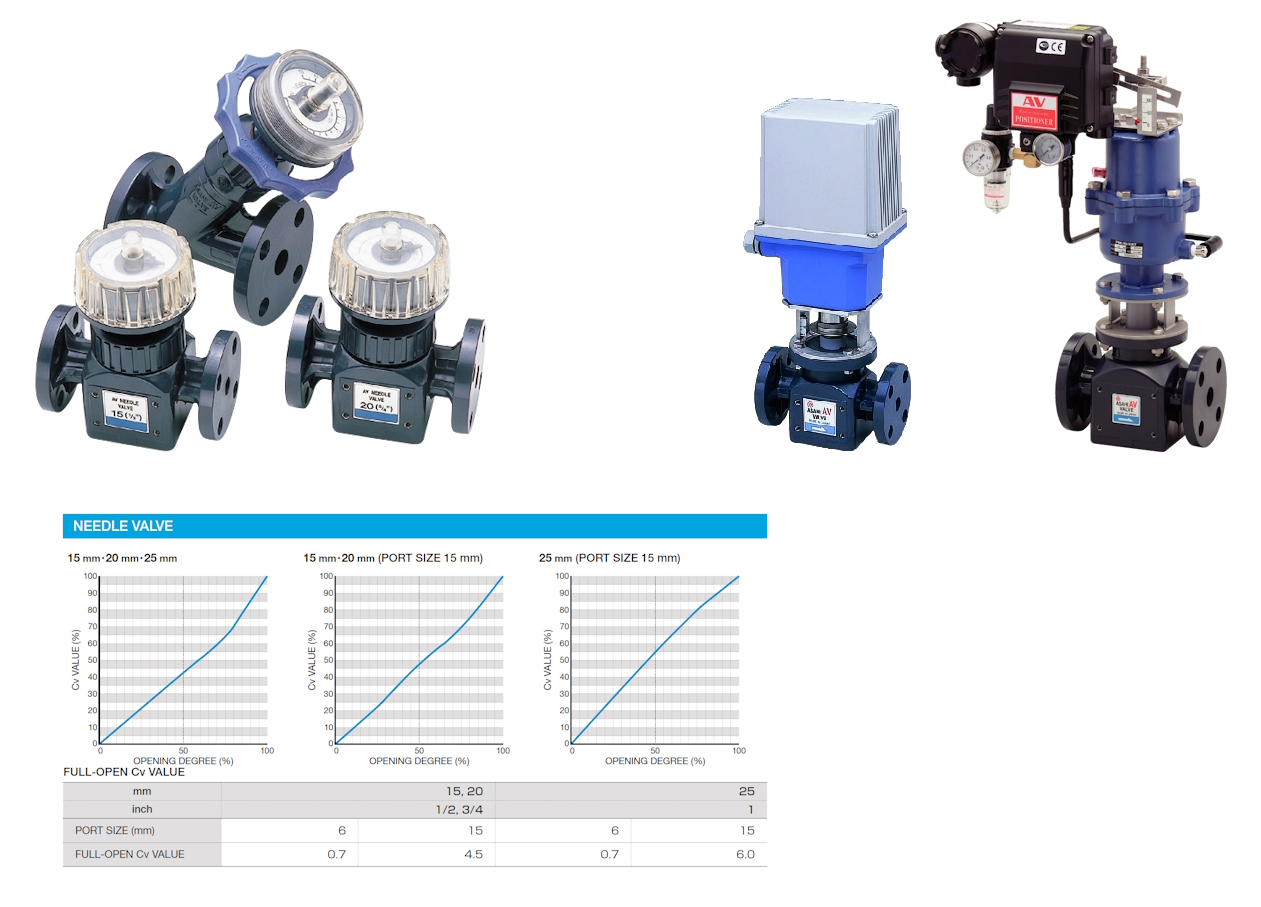

Valves that are good at high-precision flow control... Needle Valve, Control Valve

When you need high-precision flow control...

Our proprietary special shaped plug enables high-precision flow control.

• Needle Valve

A low-cost valve that can regulate flow... Ball Valve Type 21α (Flow Control Type)

When you want to regulate flow with an inexpensive, compact valve...

The special shaped ball makes it possible to control flow.

• Please contact your nearest ASAHI YUKIZAI office.

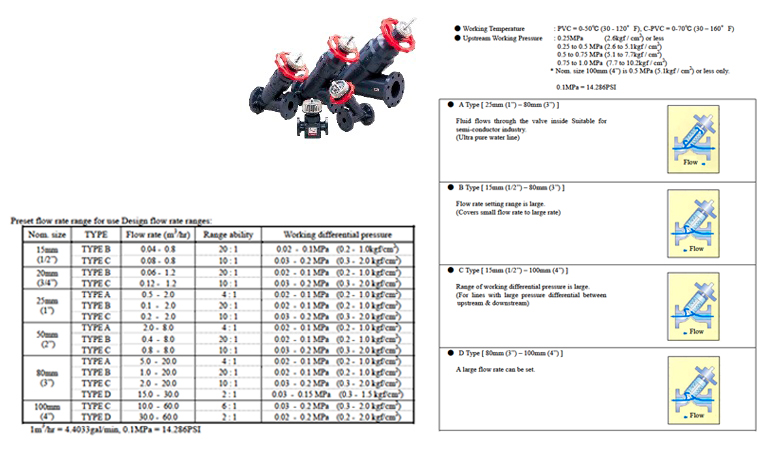

A valve that is good at letting through a specific flow rate... Constant Flow Valve

Which valve is the best choice to let through a specific flow rate?

Energy-saving valve that requires no power source since it harnesses energy from the flow of the fluid.

• Constant Flow Valve

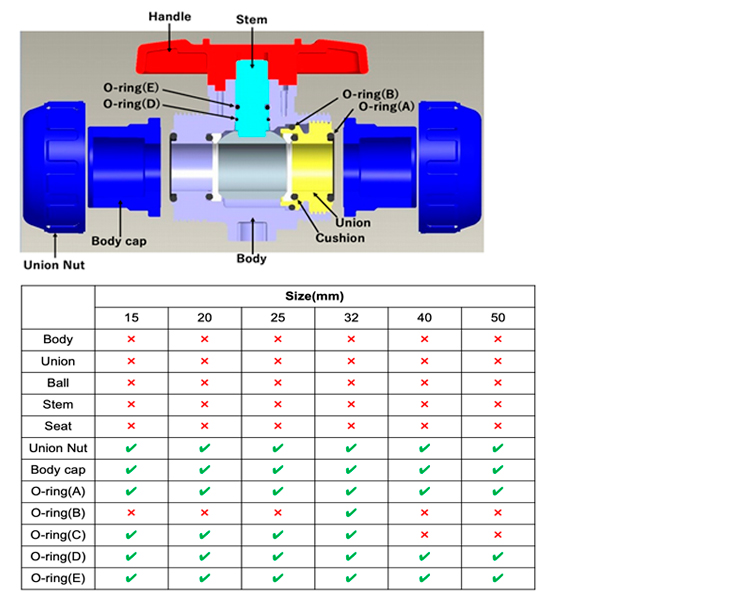

Valve component compatibility... Ball Valve Type 21α and Type 21

The compatibility of ball valve components depends on the valve type and model.

Please contact your nearest ASAHI YUKIZAI office for further details.

Please consult the price lists for the prices of our various products.

Please contact your nearest ASAHI YUKIZAI office for information about any products that are not on the price list.

<Permissible amount of organic solvent etc. that may be ingested>

W(g) = 2/5 x × A(m³)
W = Amount of organic solvent etc. being used.
A = The air volume of the workspace. Airspace that is more than 4 meters above the floor is not included. However, if the air volume is greater than 150 ³, A shall be taken to be 150 m³
Example: If the workspace air volume is 100 m³, the permissible amount of organic solvent is 40 g.

Please be careful as a large amount of adhesive is required for large-bore pipes (300A or bigger).

AV adhesive, if unopened and stored appropriately, is usable for roughly three years since its date of manufacture.
The date of manufacture is shown on the bottom of the can. Example: 190311 means March 11, 2019
However, do not use an adhesive if it lacks the distinctive irritant odor or if it has congealed.
